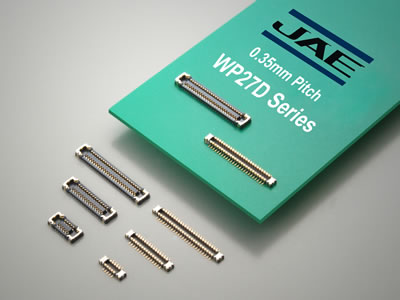

To prevent breakage during mating, JAE has developed a stacked board-to-board connector "WP27D Series" with a rugged construction, 0.35mm pitch, 1.9mm wide and 0.7mm combination with power terminals. The company is located in:
:: Background
As smartphones, wearable devices, tablet PCs and other small portable devices, multi-function, high performance caused by increased power consumption, which requires internal connections to be able to withstand greater current.
This product with a power terminal can withstand high current (also plays the role of abutment), the metal base to protect the mating surface, to prevent damage to the mold and enhance the robustness. In addition, with the power terminal is different from the signal terminals, saving on the board design space, but also improve the design freedom.
The product features a 2-point contact structure with a proven track record to improve impact resistance and shock resistance. Meanwhile, good fingertip feel (chimerism) improves operability.
