MCON  is a series of terminal systems commonly used in electrical and  electronic applications for passenger cars and commercial vehicles. This terminal is designed to meet the automotive industry's standardized blade size and interface requirements. In  addition to the miniaturized MCON 0.50 terminal system, all terminals  adopt a two-terminal design strategy to separate electrical and  mechanical performance. MCON terminal series for sealed and unsealed applications. The  new generation of MCON connector system provides male and female jacket  to meet the waterproof and extreme vibration conditions. To make the termination process fast and economical, TE offers a wide range of applications tools.

Advantages of MCON terminals
High performance, high reliability


High-performance copper alloy

Redundant touch point technology to improve reliability

Supports high vibration levels to meet the needs of future devices

Provides over-stress protection for contact springs

Terminal box with polarization and auxiliary lock function

Protected Locking Barbs (Excluding Blade Main Body Version MCON 0.50)

Sealed and unsealed versions

-40 ° C to 150 ° C temperature range

-40 ° C to 180 ° C, providing innovative surface technology

Three-way auxiliary lock access


Receptacle Terminals

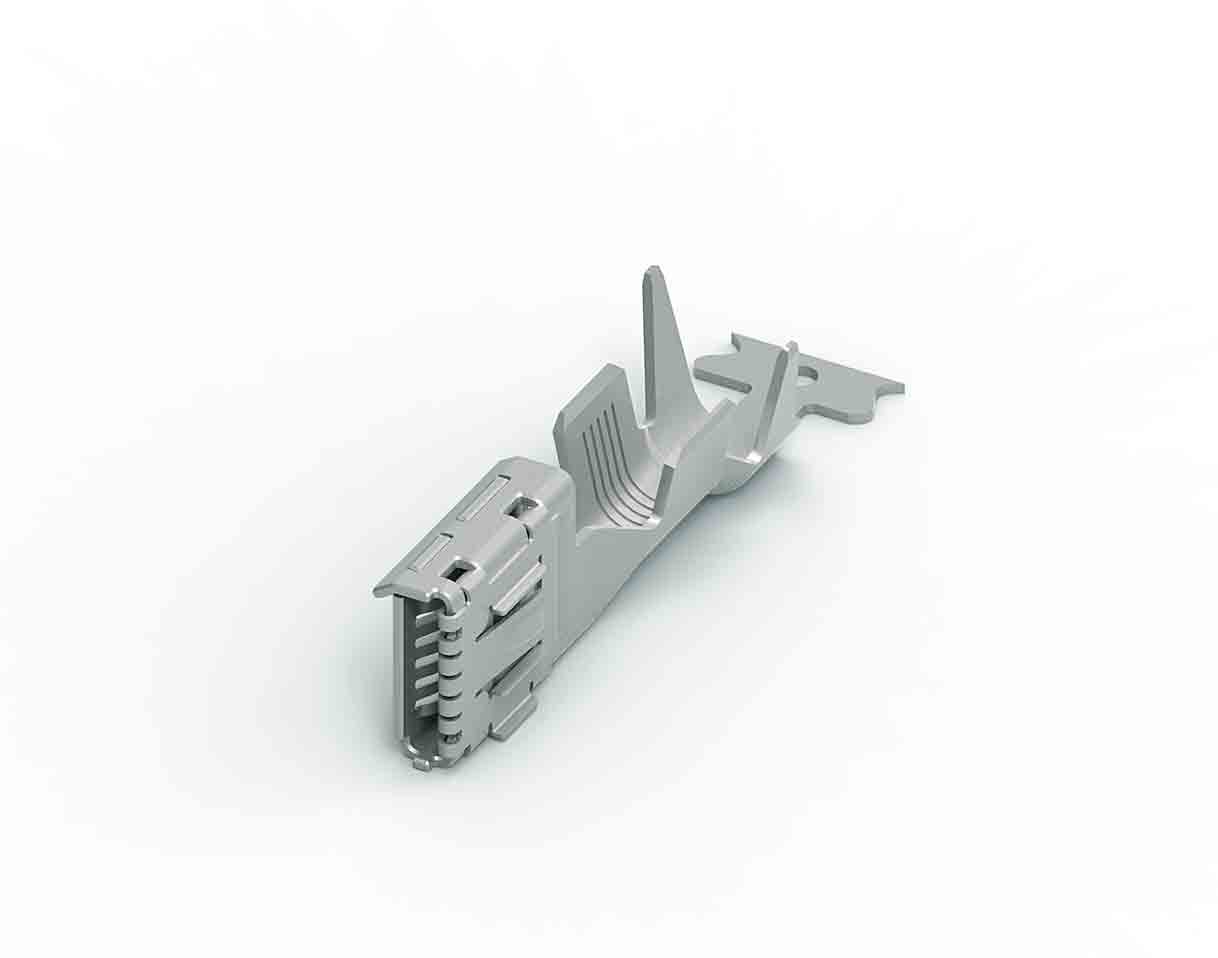

1511163220415212.jpgMCON 9.5 MM









MCON 8 MM









MCON 6.3 MM









MCON 2.8 MM









HPF 1.2 MM









MCON 1.2 MM









MCON 1.2 MM

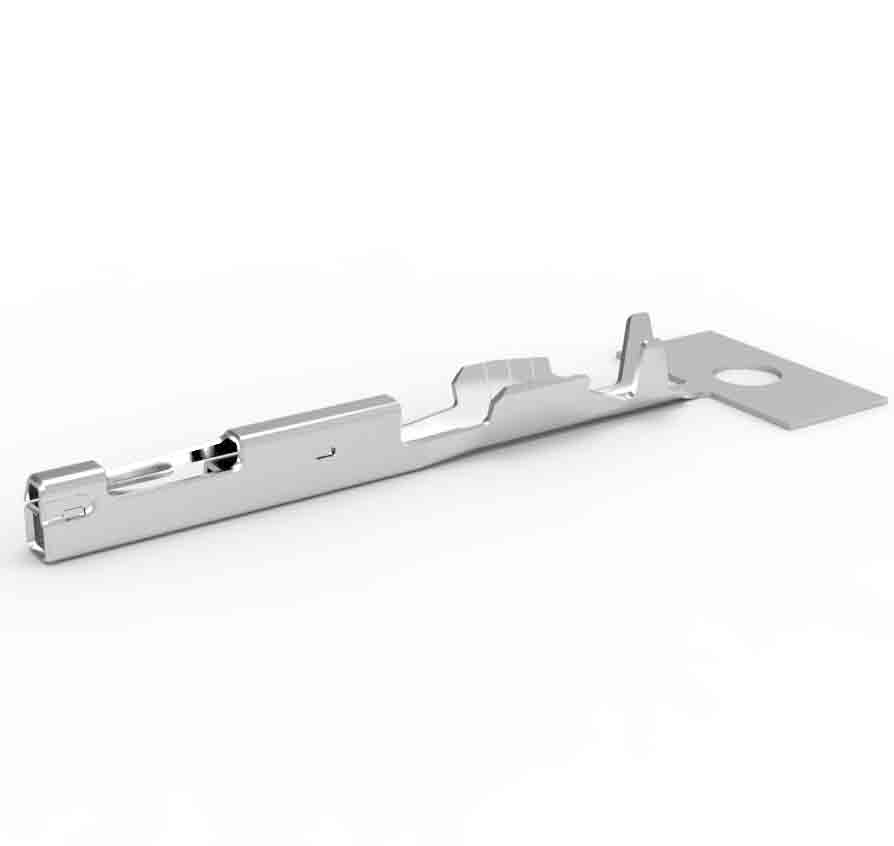

1511163224927511.jpgMCON 0.5 MM








Tab Terminals

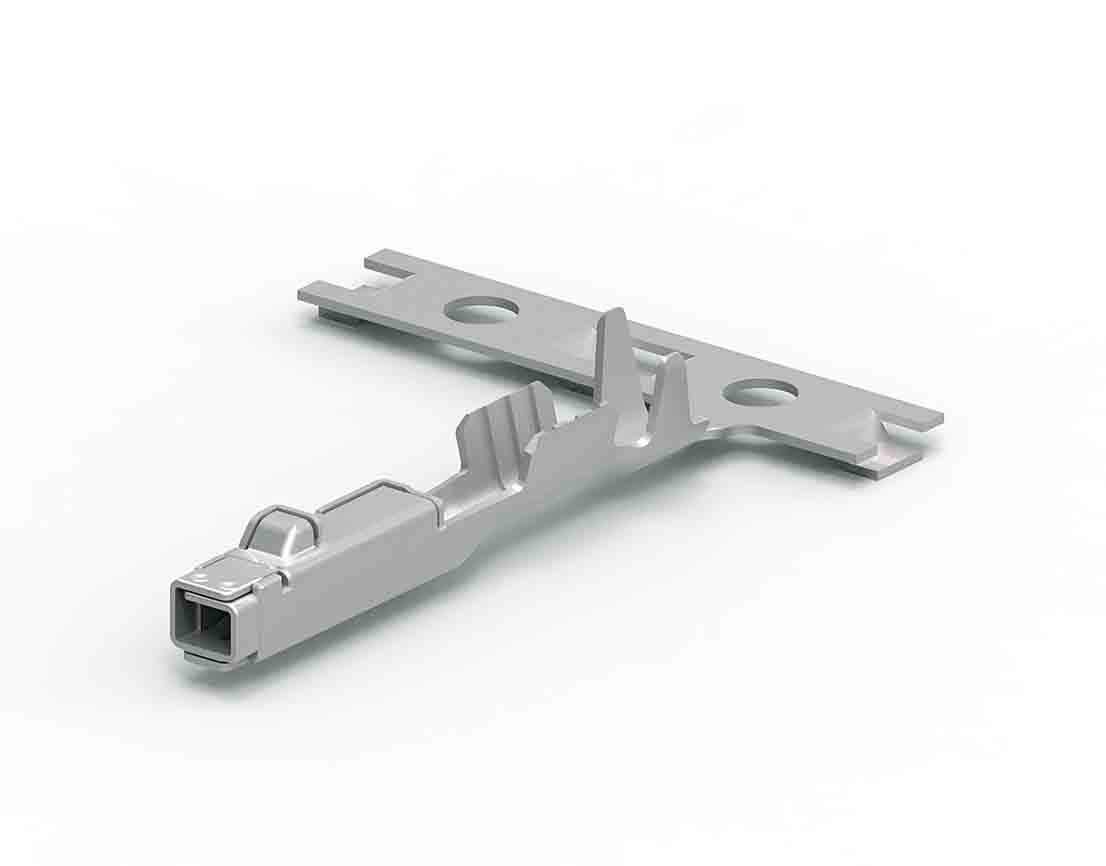

1511163220451867.jpgMCON  1.2 MM









MCON 1.2 MM









MCON connector
Designed for vibration and mechanical stress

The  new generation of MCON connection systems provide both male and female  jackets to withstand water and extreme vibration conditions. This  system is designed for the electrical and electronic applications of  motor vehicles where vibration and mechanical stress can affect the  quality of the terminal system.
Features
Sheath and connector

     CPA (Connector Location Assurance) feature
     High reliability status - support for long-term use
     Support high vibration level
     Outstanding design avoids quality issues and reduces manufacturing and maintenance costs
     Integrated auxiliary locking device in pre-locked position
     Wire-to-Wire Sealed and Unsealed Connectors (SWS)
     Polarization, a variety of foolproof design


Receptacle Housings




Sealed MCON 1.2 MM is used to lock the

barbed terminals 2-3 digits / 130 ° C







Sealed MCON 1.2 MM is used to lock barbed

terminals 2-6 digits / 150 ° C








Sealed MCON 1.2 MM for tipless body

terminals 2-6 digits / 125 ° C






HPC1.2 MM Lock barbs 2-3 / 150 ℃







Sealed MCON 1.2 MM for tipless body

terminals 2-6 digits / 150 °





MCON 6.3 MM No sharp blade body terminal 3/125 ℃

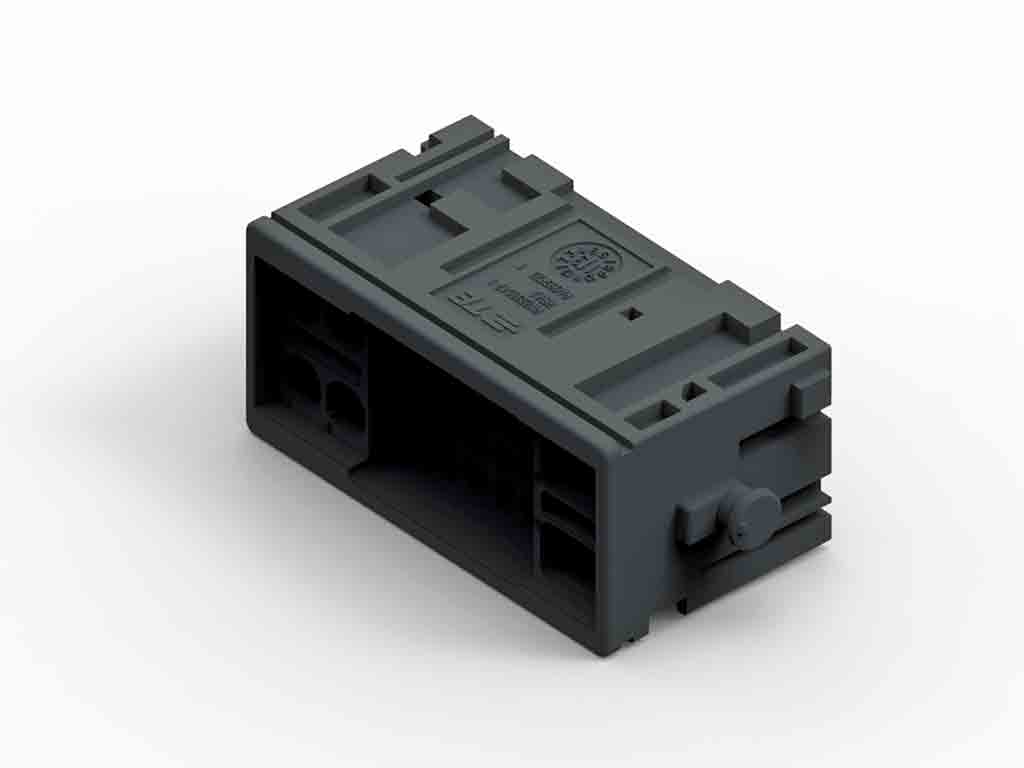

1511165365710230.jpgMCON 1.2 MM, 2.8MM, 6.3MM 32-bit mixed rear sheath









Sealed MCON 1.2 MM is used to lock barbed

terminals 2-10 digits / 150 ° C






Tab Housings



Sealed MCON 1.2 MM is used to lock barbed

terminals 2-8 digits / 130 ° C










Sealed MCON 1.2 MM for tipless body terminals 2-6 digits / 125 ° C
