FA10 series

Product Description

With the development of multi-functional mobile devices in recent years, there are more functional modules on the terminal.
As  a result, the module and the motherboard connected to the connector  will increase, reducing the number of connector man-hours and errors has  become an essential issue. In this context, JAE  has developed a unique One-action chimerism that enables the "FA10  Series" connector to reduce operator man-hours and reduce operational  errors.

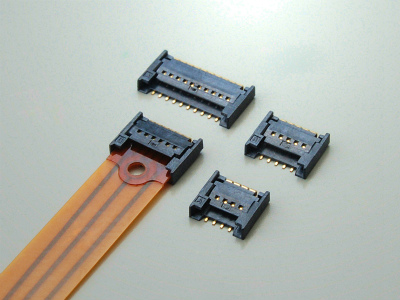

Pitch 0.5 mm, height 0.9 mm, depth 3.2 mm space-saving FPC connector.
Applicable FPC thickness 0.2 mm ± 0.03 mm, the upper and lower contact methods, the use of LIF (low insertion force) structure.
FPC shape design has recessed parts to prevent oblique inserted.
Insert, unplug Actuator and other operations do not need, One-action chimeric way.
FPC insertion port is designed to be tapered, insert orientation has been enhanced.
In  addition to the bottom of the connector can be wired outside the  terminal, before and after two-point guidance, peel strength is  enhanced.
Lead-free, halogen-free.
Nickel separator to prevent climbing tin.

Application market

Small mobile devices such as smartphones, tablets, portable game consoles, digital cameras, etc. Internal FPC connector

General specifications
Number of PINs:

Contact resistance (top connection, bottom connection): 70m or less
Withstand voltage: AC250V r.m.s. 1 minute or less
Operating temperature range: -40 ℃ ~ +85 ℃
Mating life: 20 times
Rated current: AC, DC each 0.5A / terminal
Rated voltage: AC, DC 50V / terminal
Applicable FPC Thickness:

t0.2 mm ± 0.03 mm
Pitch: 0.5㎜ single row arrangement

Material / Finish


Material / Finish


Heat-resistant plastic (black, halogen-free)


Copper alloy, nickel plating on the part
    Au0.1μm or more
